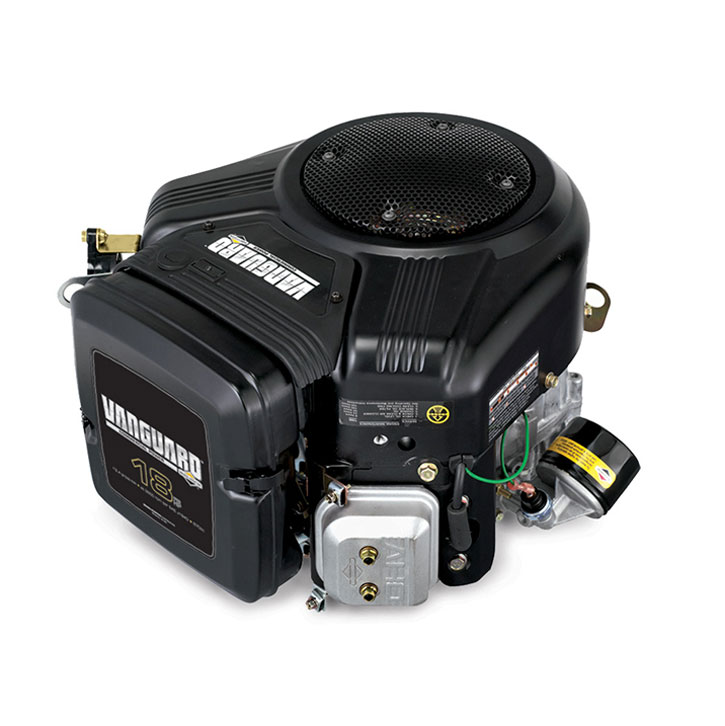

Vanguard™ 18 Gross HP* Vertical

Vanguard™ 18 Gross HP* Vertical

Model Number : 3567

The Small Block V-Twin engine lineup is designed-engineered to handle the most demanding commercial applications. Energetic and quick starting, these powerhouse engines feature a number of advanced technologies and integrated components, while also being lighter and more compact than leading competitor's engines.

18

Gross Horsepower

570

Displacement (cc)

1.7

Oil Capacity (L)

3 Year

Warranty

Features

Overhead Valve (OHV) Engine Design

OHV engines run cooler and cleaner for better fuel economy and longer engine life.

Pressure Lubrication with Oil Filter

Durability

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Type
V-Twin, 4-stroke, air cooled, OHV (Overhead Valve)
Gross HP* (kW) @ 3’600 rpm
18.0
Engine Displacement (cc)
570
Cylinder
Cast Iron Sleeve
Bore (mm)
72.0
Stroke (mm)
70.0
Number of Cylinders
V-Twin
Oil Capacity (L)
1.70
Length (mm)
318
Width (mm)
407
Height (mm)
449
Commercial Limited Warranty†
3 Years
Warranty Commercial Power Source Info
3 Year Limited

*Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.
†See briggsandstratton.com for warranty details.
