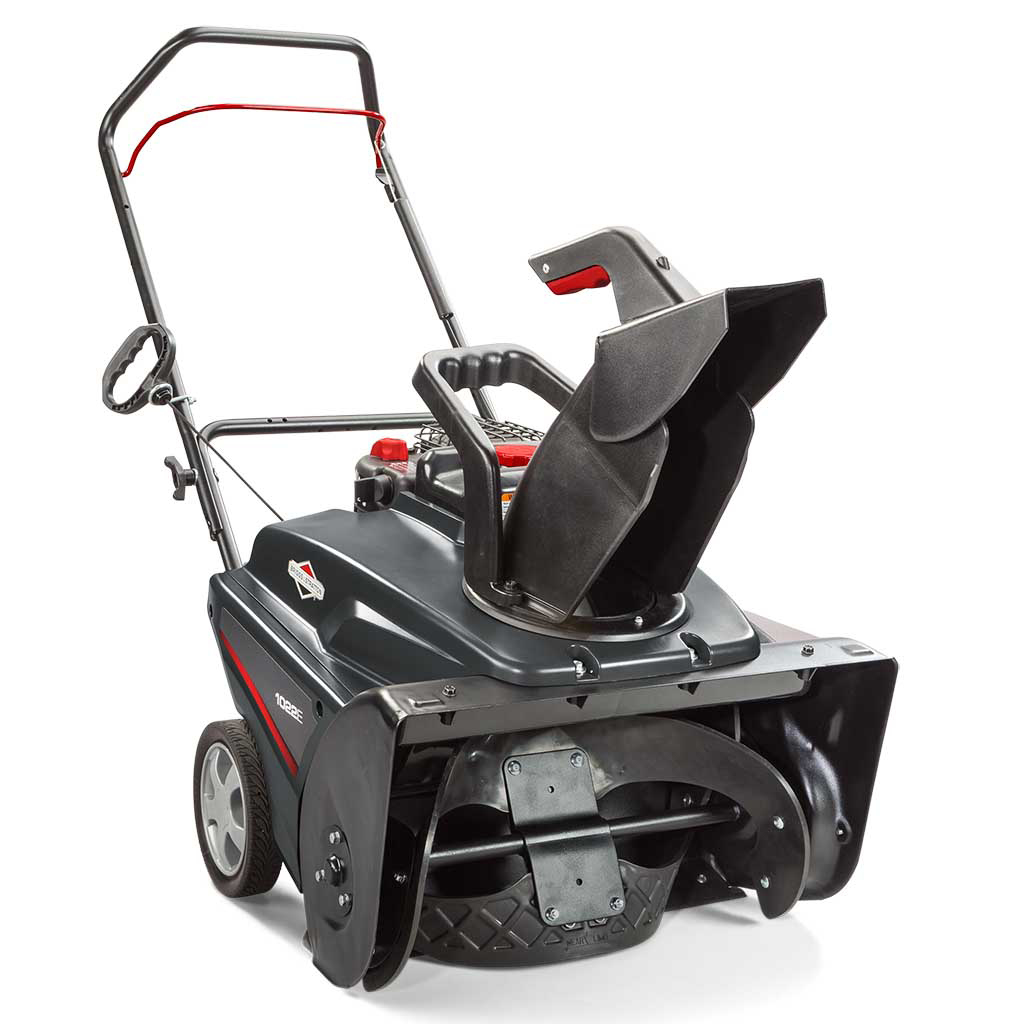

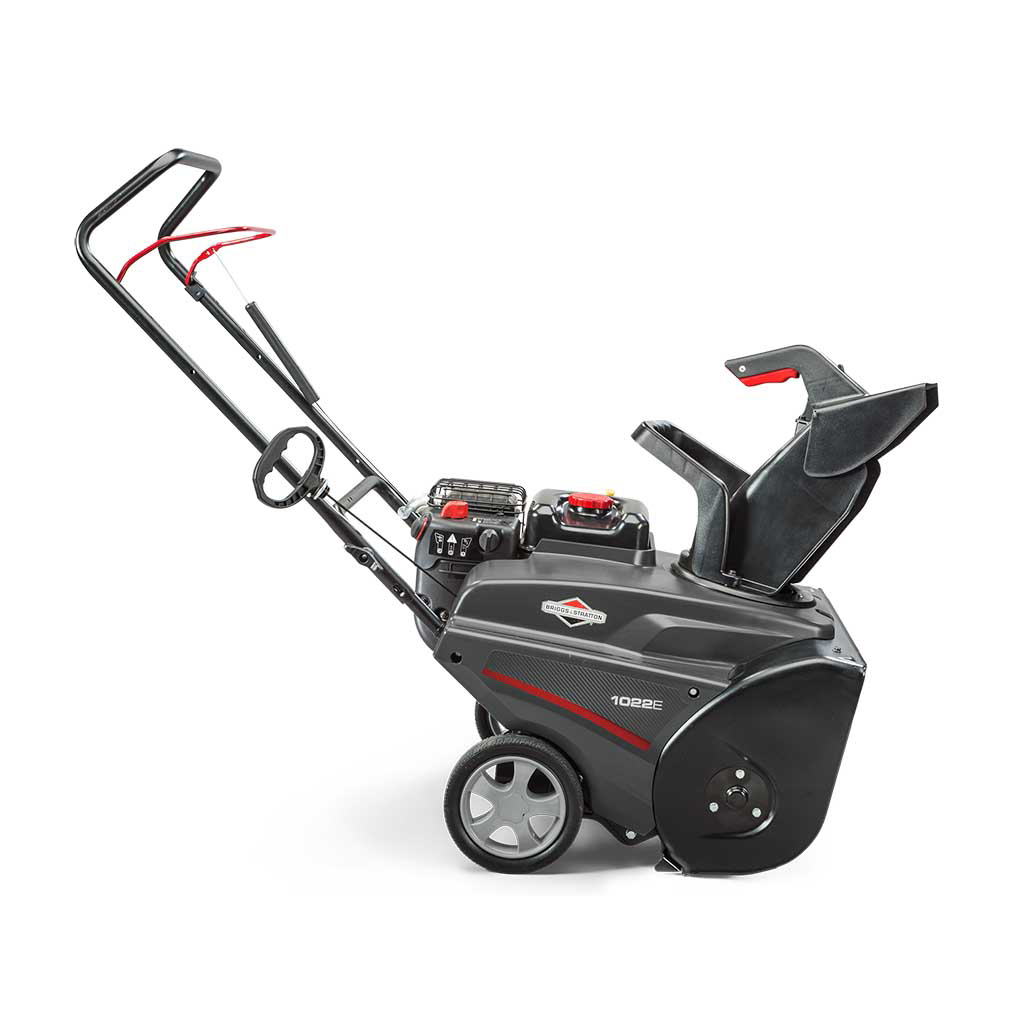

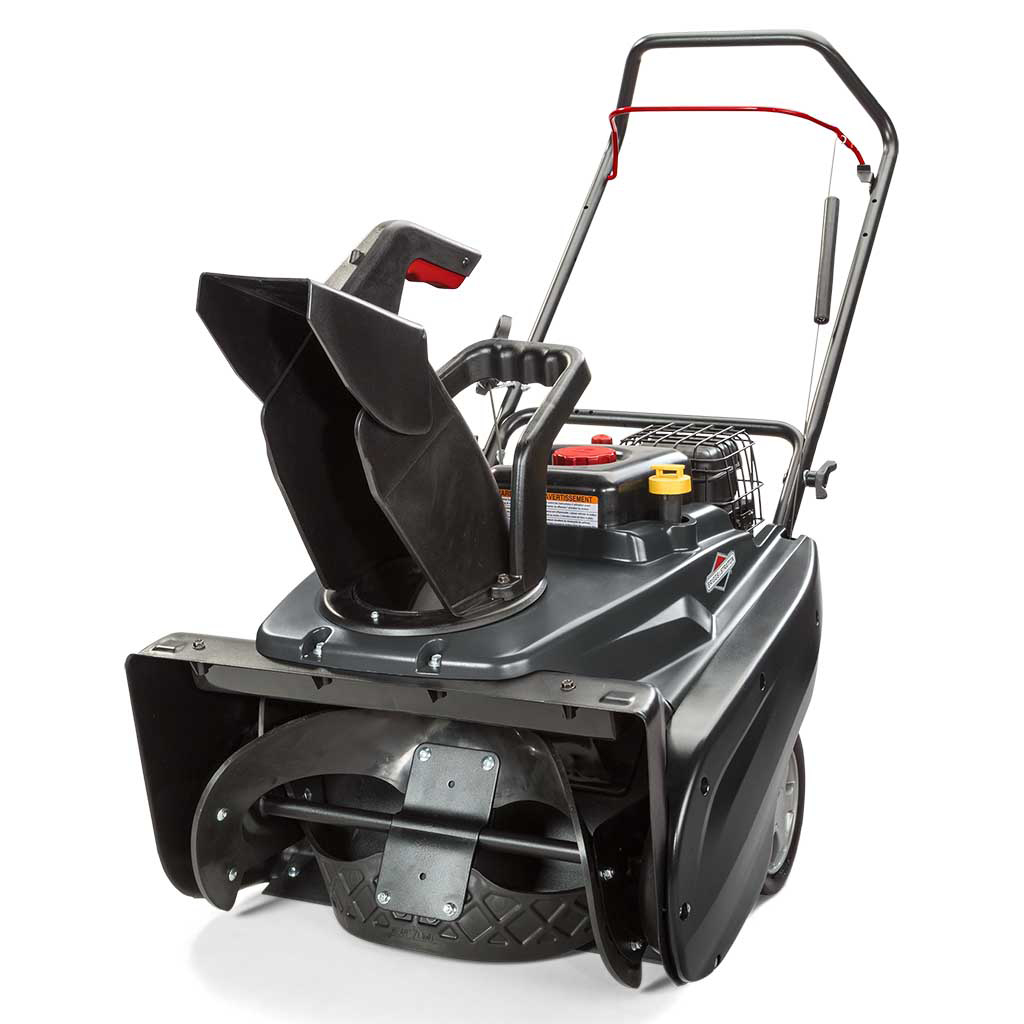

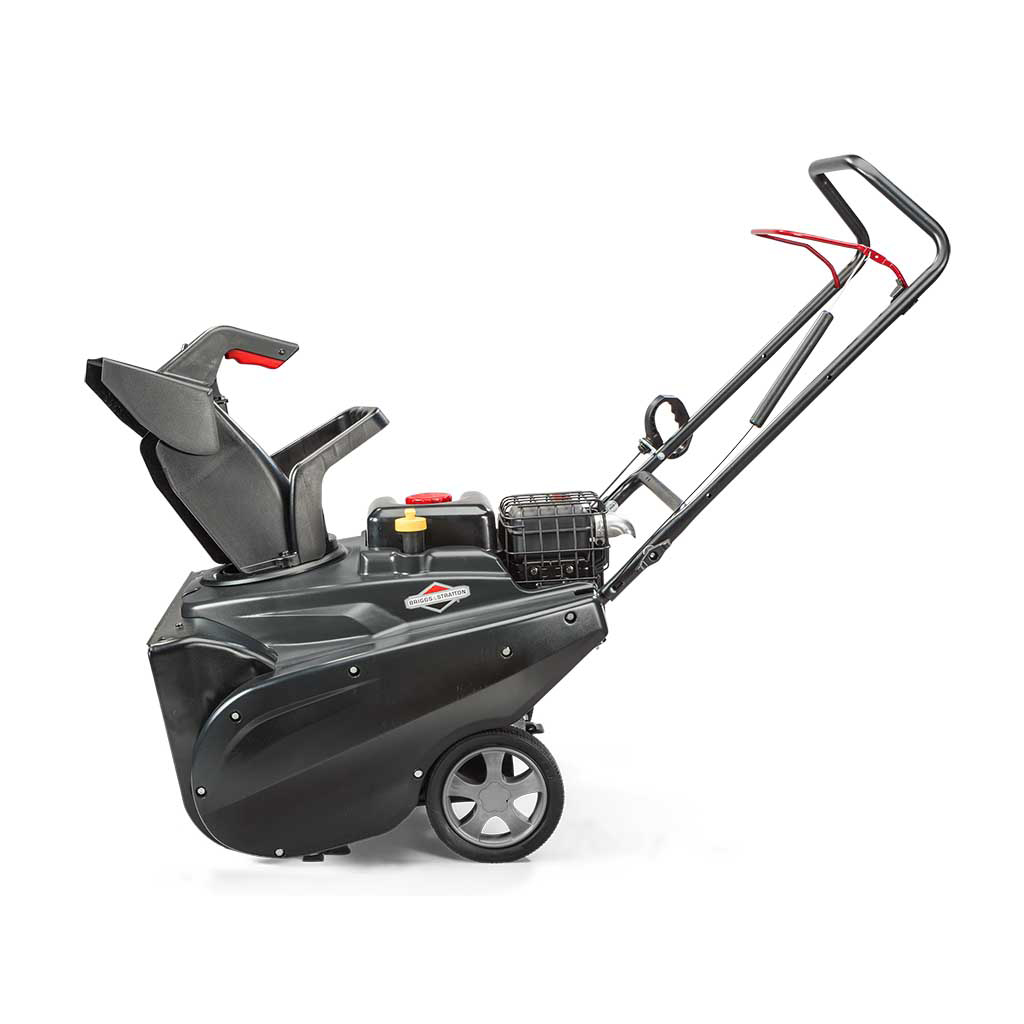

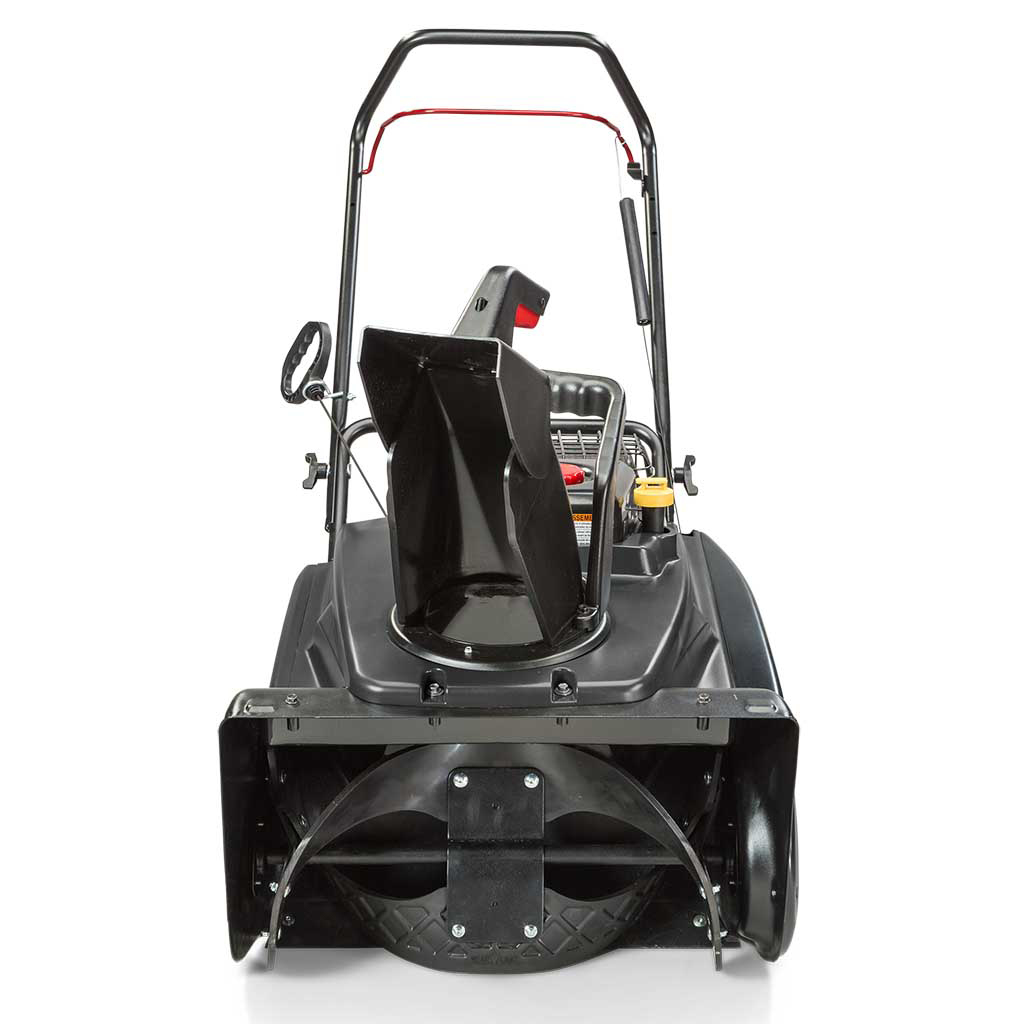

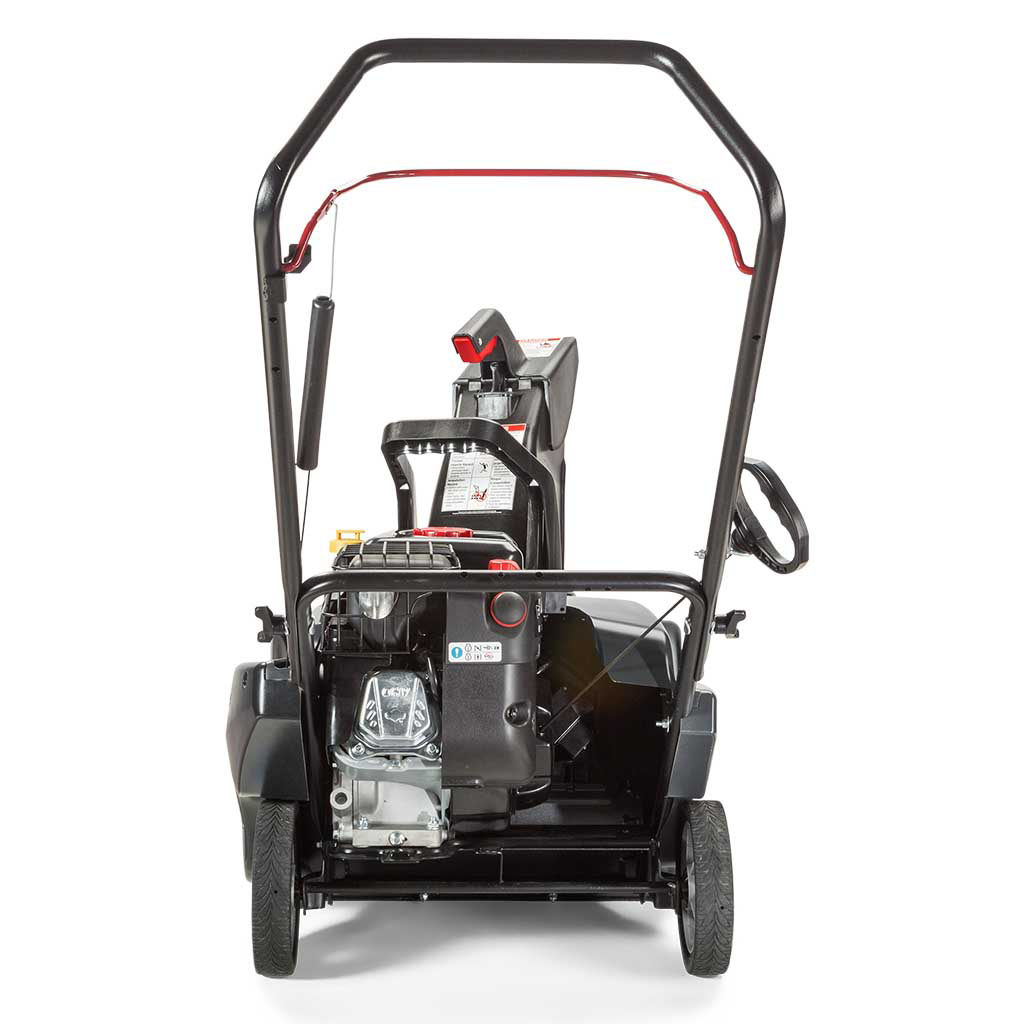

22" / 9.50 TP* / Recoil Start

Single-Stage Snow Blower

Equipped with a dependable Briggs & Stratton 950 Snow Series™ Engine designed for harsh winter applications, this snow blower is the perfect machine for helping you take on up to 12-inches of light snow.

9.50

Gross Torque (ft-lbs)

22"

Clearing Width

30'

Throwing Distance

208cc

Displacement

Features

Briggs & Stratton Snow Series™ Engine

The Snow Series engine was designed to deliver optimum power in extreme winter conditions to help you tackle the snowfall quickly and easily. Plus, it includes oversized controls for mitten-friendly operation.

Quick Adjust Chute Deflector

Easily change the height and distance snow is thrown with a simple squeeze of the chute-mounted handle.

Auger-Assist Drive System

The wear-resistant rubber edged auger cleans snow down to the pavement and helps propel the snow blower forward.

Chute-Mounted Rotation Handle

Easily change the chute direction from left-to-right with the chute mounted rotation handle.

Sturdy Construction

One-piece auger housing with ball bearings provides extra long life.

Compact Size

More maneuverable and easier to control size - plus it saves space in your garage or shed.

Specs

Model Number

1696737-01

US MSRP (Manufacturer Suggested Retail Price)†

$569.00

Type

Single-Stage

Clearing Width (in)

22.0

Throwing Distance**

Intake Height (in)

12.5

Auger Diameter (in)

10.0

Auger Type

Thermal Plastic Urethane

Auger Gear Case Material

Number of Impeller Blades

Skid Shoes

Engine Brand

Briggs & Stratton

Engine Series

Snow Series™

Engine Displacement (cc)

208

Torque (ft-lbs, gross)*

9.50

Fuel Tank Capacity (qts)

3.2

Chute Material

Plastic

Chute Deflector

Quick Adjust

Chute Rotation

200° Manual

Drive Type

Auger Propelled

Ground Speed Fwd (mph)

Ground Speed Rev (mph)

Tire Size/Thread (in)

8 x 2

FreeHand™ Control

Dual Trigger Steering

false

Heated Hand Grips

Headlight

Storage Cover

Consumer Warranty (Product) ***

3-year

Commercial Warranty (Product) ***

90-day

^{*All power levels are stated ft.-lbs. gross torque at 2600 RPM per SAE J1940 as rated by Briggs & Stratton
**Capacity and throwing distances can be greatly affected by conditions
***See Operator's Manual for complete warranty details}
^{†MSRP Price is Manufacturer Suggested Retail Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.}
