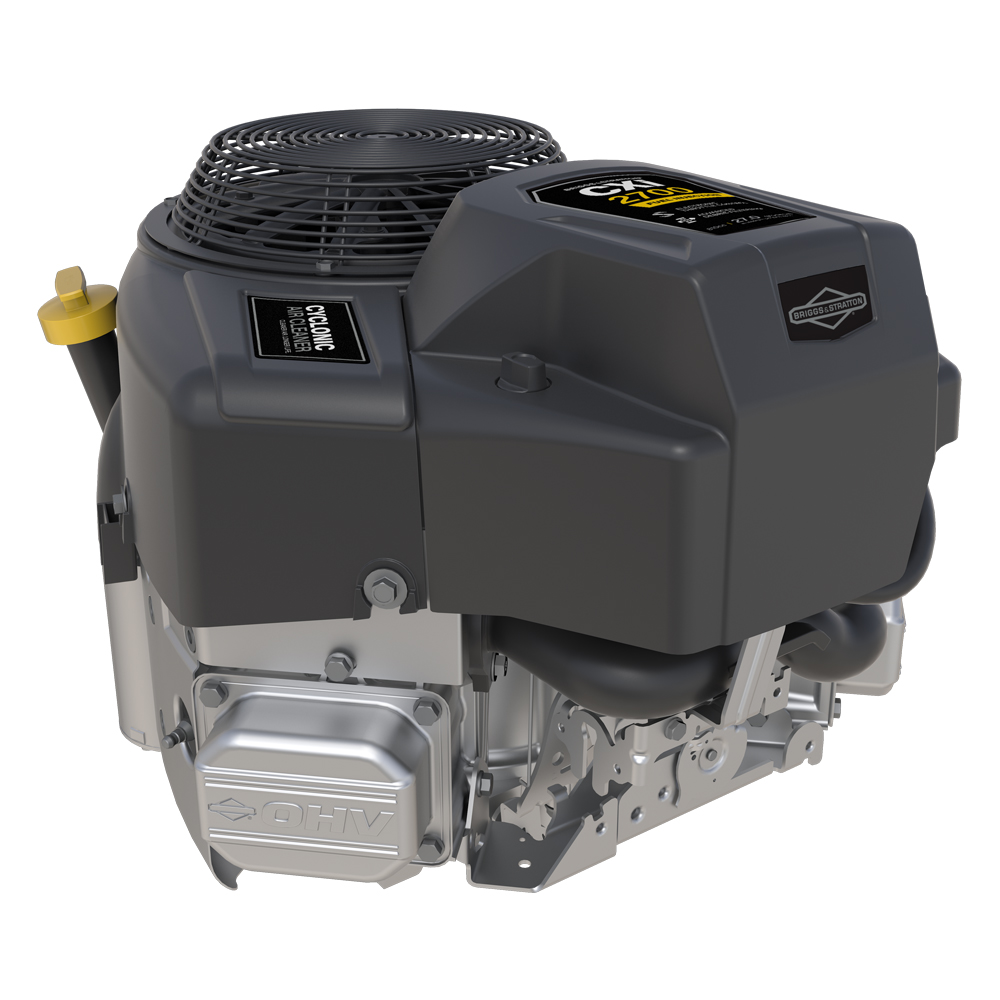

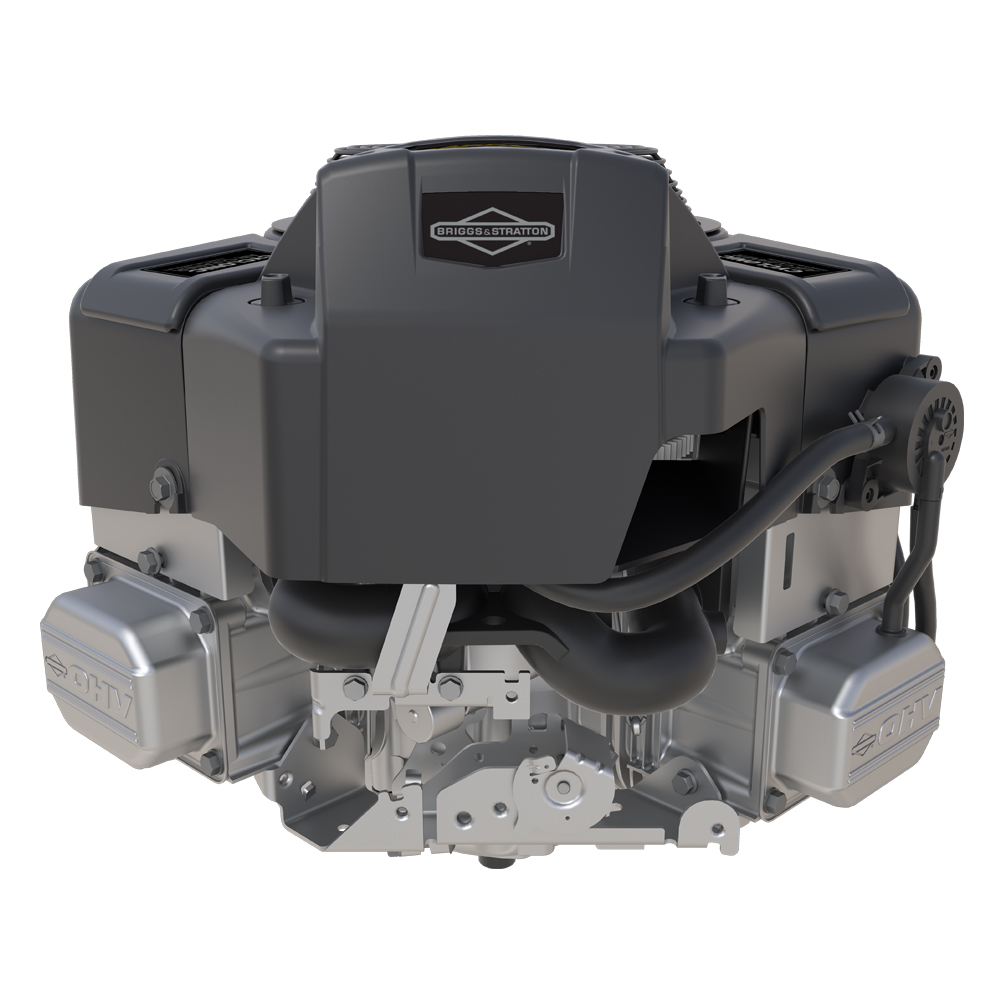

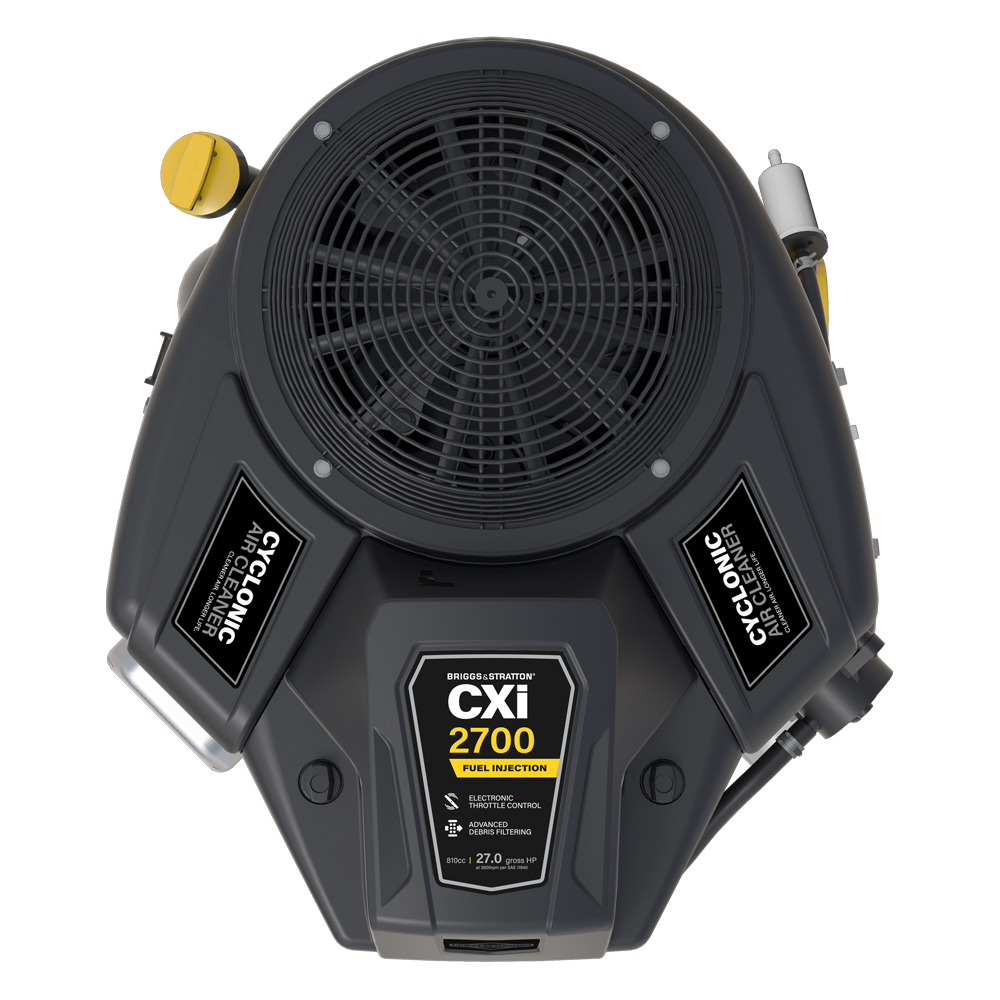

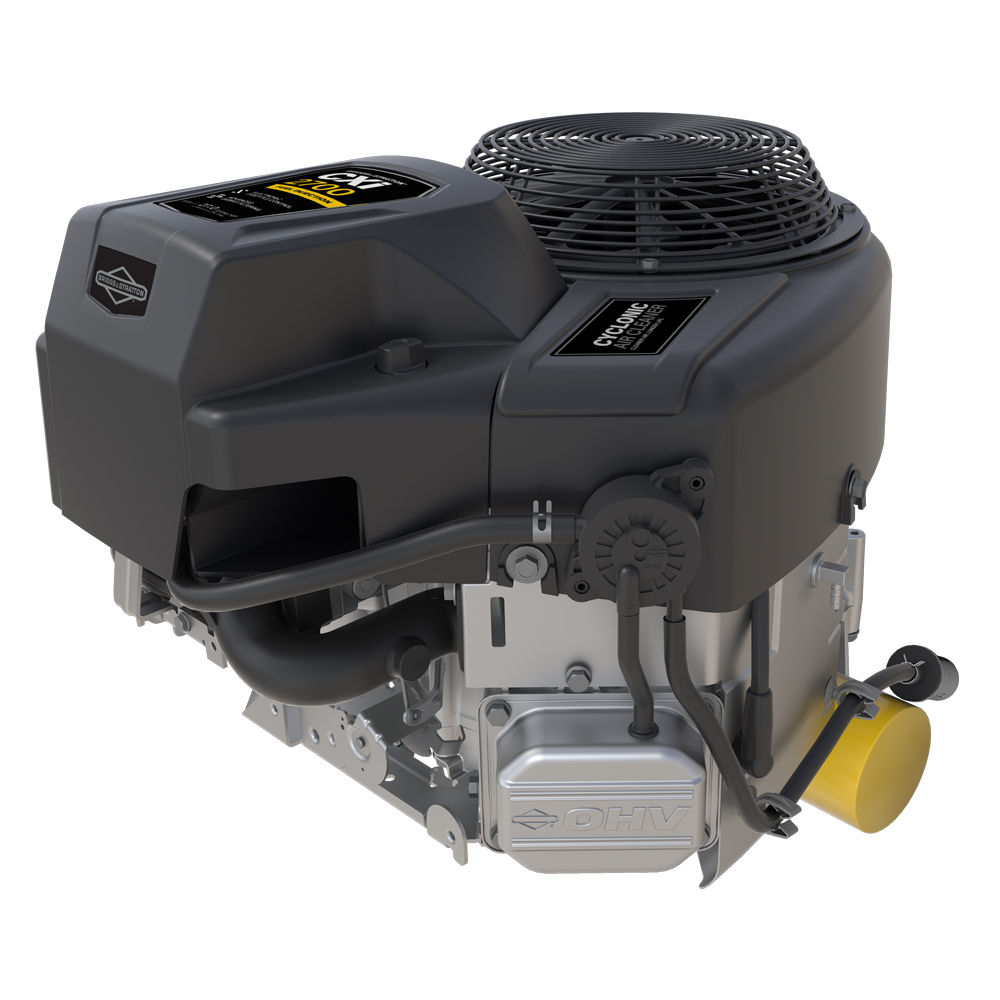

CXi Series Engines

CXi Series Engines

Commercial Performance, Reliable Power.

These V-Twin engines are specially designed for zero turn mowers and other high-debris applications to endure extended use in extreme conditions. Cyclonic air filtering keeps dirt out and extends engine life. The V-Twin design delivers more power, is naturally balanced for less vibration, runs cooler and cleaner.

  • 5-Step Cyclonic Debris Management extends engine life.
  • Strengthened cylinder, sump and rod for durability.
  • Premium oil and fuel filters protect the engine.
  • Available Electronic Fuel Injection (EFI) and Electronic Throttle Control (ETC) on select engines.
  • Optional Oil Xtend with 250 hour maintenance.
  • Made in the USA of US and global parts.

20.0 - 27.0

Gross Horsepower (HP)

656 - 810cc

Displacement

Gasoline

Engine Fuel

64 - 67

Oil Capacity (oz)

Features

Made in the USA

Made in the USA of US and global parts.

Patented 5-Step Integrated Cyclonic Debris Management System

Extended durability under heavy debris conditions.

V-Twin Engine

For more power, comfort and durability.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
40T8
Gross Horsepower (ft-lbs)*
20
Engine Displacement (cc)
656
Number of Cylinders
V-Twin
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
19.3
Width (in)
17.6
Height (in)
15.7
Weight (lbs)
84
Bore (in)
2.97
Stroke (in)
2.89
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
64
Oil Filter
Premium
Starter
Electronic Start
Air Filter
Integrated Cyclonic Air Cleaner - Patented 5 Step
Muffler
N/A
Certified Power Rating
Warranty Consumer Product Info
3 year consumer warranty
Warranty Commercial Product Info
3 year commercial warranty

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
44T7
Gross Horsepower (ft-lbs)*
23
Engine Displacement (cc)
724
Number of Cylinders
V-Twin
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
19.3
Width (in)
17.6
Height (in)
15.7
Weight (lbs)
84
Bore (in)
3.12
Stroke (in)
2.89
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
67 (75 oz with optional Oil Xtend)
Oil Filter
Premium
Starter
Electronic Start
Air Filter
Integrated Cyclonic Air Cleaner - Patented 5 Step
Muffler
N/A
Certified Power Rating
Warranty Consumer Product Info
3 year consumer warranty
Warranty Commercial Product Info
3 year commercial warranty

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
44T9
Gross Horsepower (ft-lbs)*
25
Engine Displacement (cc)
724
Number of Cylinders
V-Twin
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
19.3
Width (in)
17.6
Height (in)
15.7
Weight (lbs)
84
Bore (in)
3.12
Stroke (in)
2.89
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
67 (75 oz with optional Oil Xtend)
Oil Filter
Premium
Starter
Electronic Start
Air Filter
Integrated Cyclonic Air Cleaner - Patented 5 Step
Muffler
N/A
Certified Power Rating
Warranty Consumer Product Info
3 year consumer warranty
Warranty Commercial Product Info
3 year commercial warranty

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
44X9
Gross Horsepower (ft-lbs)*
25
Engine Displacement (cc)
724
Engine Configuration
Vertical
OHV Engine
true
Length (in)
19.3
Width (in)
17.6
Height (in)
15.7
Weight (lbs)
86.5
Bore (in)
3.12
Stroke (in)
2.89
Engine Fuel
Gasoline
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
67 (75 oz with optional Oil Xtend)
Oil Filter
Premium
Starter
EFI/ETC
Air Filter
Integral Cyclonic Air Filter
Muffler
N/A
Compression Ratio
8:5:1
Ignition System
Computer Controlled Electronic Ignition
Warranty Commercial Product Info
3 Year Commercial Limited

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
49T8
Gross Horsepower (ft-lbs)*
27
Engine Displacement (cc)
810
Number of Cylinders
V-Twin
Engine Configuration
Vertical Shaft
OHV Engine
true
Length (in)
19.3
Width (in)
17.6
Height (in)
15.7
Weight (lbs)
87
Bore (in)
3.30
Stroke (in)
2.89
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
N/A
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
67 (75 oz with optional Oil Xtend)
Oil Filter
Premium
Starter
Electric Start
Air Filter
Integrated Cyclonic Air Cleaner - Patented 5 Step
Muffler
N/A
Certified Power Rating
Warranty Consumer Product Info
3 year consumer warranty
Warranty Commercial Product Info
3 year commercial warranty

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
49X9
Gross Horsepower (ft-lbs)*
27
Engine Displacement (cc)
810
Engine Configuration
Vertical
OHV Engine
true
Length (in)
19.3
Width (in)
17.6
Height (in)
15.7
Weight (lbs)
89
Bore (in)
3.3
Stroke (in)
2.89
Engine Fuel
Gasoline
Lubrication System
Full Pressure Lubrication
Oil Capacity (oz)
67 (75 oz with optional Oil Xtend)
Oil Filter
Premium
Starter
EFI/ETC
Air Filter
Integral Cyclonic Air Filter
Muffler
N/A
Compression Ratio
8:5:1
Ignition System
Computer Controlled Electronic Ignition
Warranty Commercial Product Info
3 Year Commercial Limited

* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Support

Product Literature

Get more detailed information on what you can expect from our CXi Series V-Twin engines by downloading our literature.

Download Literature >

Find Model Number

Locate and confirm your model number to search for your operator's manual or illustrated parts list. Not sure where to look or what to look for? Use our Model Number Help guide to find right number for your search.

Learn More >

Support Articles

Search our FAQs or DIY maintenance articles to find answers on routine maintennce, repair or troubleshooting.

Search Articles >

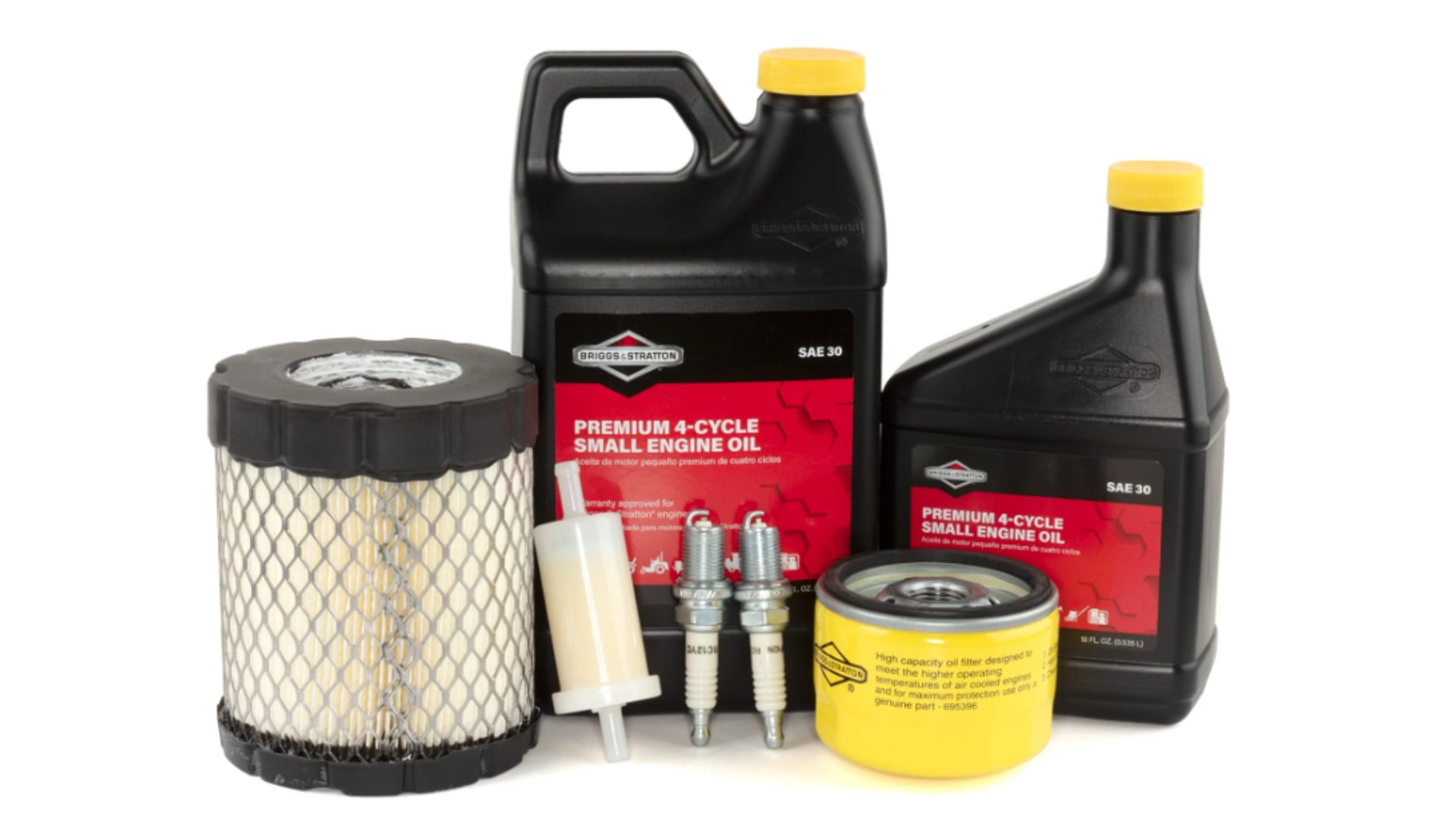

Shop Repair & Maintenance Parts
