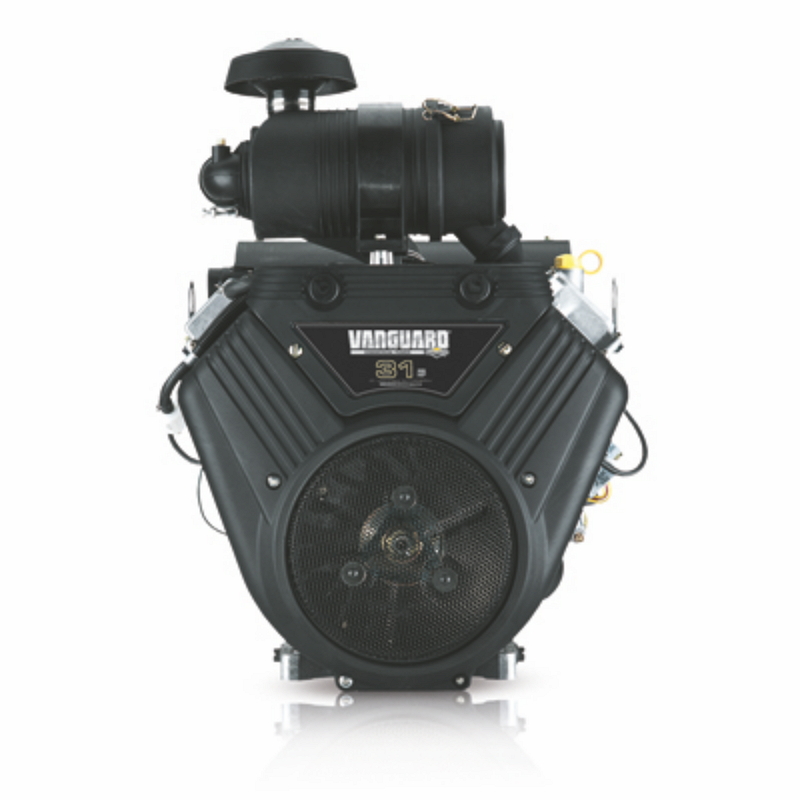

Vanguard™ 31 Gross HP
Vanguard™ 31 Gross HP
The Vanguard™ range Horizontal engines have been designed and application engineered to deliver the best value & performance, as well as setting the global standard for industrial grade petrol engines. The high end range offers 5.5-6.5, 8-10, 13, 14-16, 18, 21-23, 25-31, 33-35, 23.6, 26.5, and 31-34 HP. Briggs & Stratton Vanguard™ engines offer a 3-Year Limited Global Warranty for a full horsepower range of horizontal and vertical shaft air-cooled engines. For terms and conditions please visit www.vanguardengines.com.
Click and drag image to rotate.
31
Gross Horsepower
896
Displacement (cc)
2.30
Oil Capacity (L)
3 Years
Warranty
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
5434
Engine Type
V-Twin, 4-stroke, air cooled, OHV (Overhead Valve)
Gross HP* (kW) @ 3’600 rpm
31
Engine Displacement (cc)
896
Cylinder
Cast Iron Sleeve
Bore (mm)
86.0
Stroke (mm)
78.0
Number of Cylinders
V-Twin
Oil Capacity (L)
2.30
Weight (kg)
56.8
Length (mm)
379
Width (mm)
496
Height (mm)
725
Limited Commercial Warranty †
3 Years
